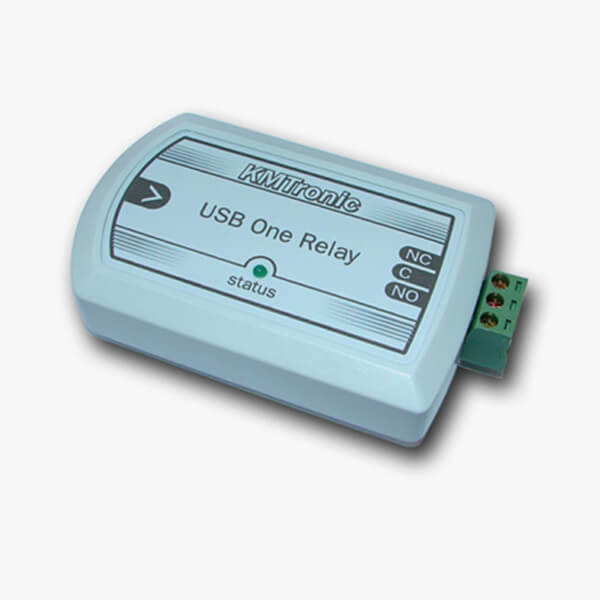

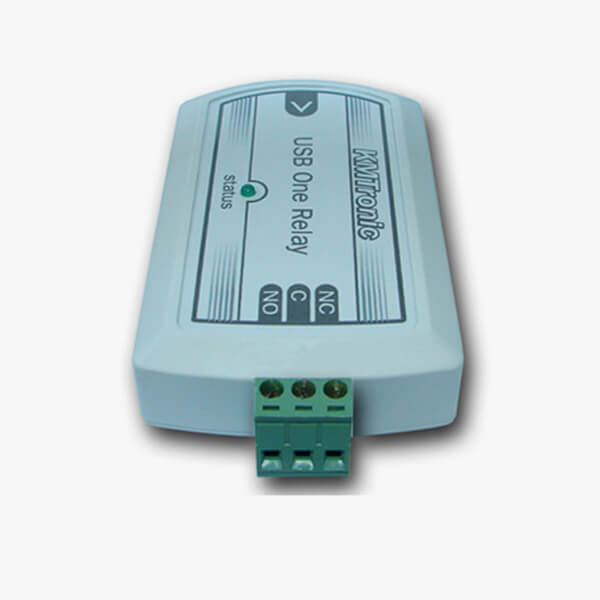

რელე KMTronic One Channel USB Relay

Name: რელე KMTronic One Channel USB Relay | MS Solutions - სკოლის მენეჯმენტის სისტემა
Brand: KMTronic
SKU: USB-Relay-One
Price: 230.00 GEL
Availability: InStock

230.00 ₾

SKU: USB-Relay-One Category: დაშვებისა & აღრიცხვის სისტემა

A general purpose USB Relay controller for connection to a PC’s USB port using VCP (Virtual COM port). Control devices using your PC. USB Relay controller allows a PC to control a single external device using simple RS232 commands. Relay is fully powered from the USB bus. Free download USB relay board control software.

ტრანსპორტირების ვადა – 4-5 დღე.

აღწერა
დამატებითი ინფორმაცია
მიმოხილვა (0)

რელე USB Relay KMTronic

რელე USB Relay KMTronic

Features:
• Fully assembled and tested.
• Fully powered from USB
• For 12V/24V DC 15A or 120V/220V AC at 10A max.
• Can be used with LabVIEW, ProfiLab, DAQFactory, TestPoint, DASYLab, VEE

Model:
U1CRB

Contents:
– One USB One relay controller

Dimensions:
100 mm / 58 mm / 24 mm

Typical Applications:
– Home automation
– Industrial automation

Links:
Manual – Download
Drivers – Download

Drivers are available to work with the following operating systems:
Window 10, Windows Server 2008 R2, Windows 7, Windows 7 x64, Windows Server 2008,
Windows Server 2008 x64, Windows Vista, Windows Vista x64, Windows Server 2003,
Windows Server 2003 x64, Windows XP, Windows XP x64, Windows 2000, Windows ME,
Windows 98, Linux, Mac OS X, Mac OS 9, Mac OS 8, Windows CE.NET (Version 4.2 and greater)

Communication Parameters:
8 Data, 1 Stop, No Parity
Baud rate : 9600

Commands:
OFF command: FF 01 00 (HEX) or 255 1 0 (DEC)
ON command: FF 01 01 (HEX) or 255 1 1 (DEC)

Software:
Download – KMTronic_USB_Timer.zip
