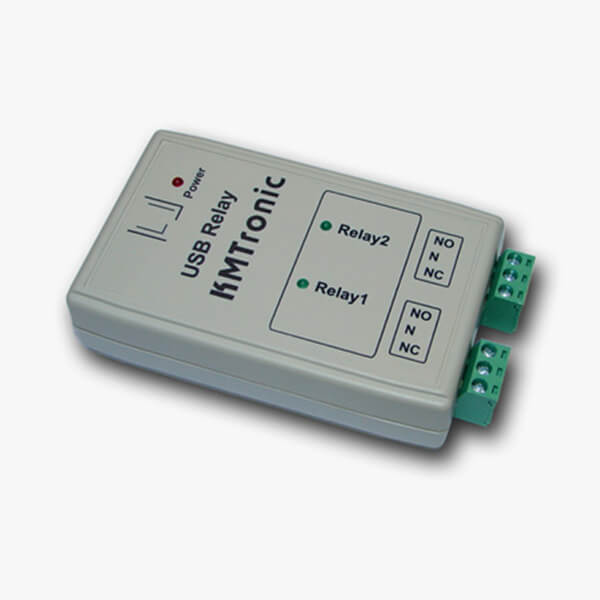

რელე KMTronic Two Channel USB Relay
280.00 ₾
A general purpose USB Relay controller for connection to a PC’s USB port using VCP (Virtual COM port). Control devices using your PC. USB Relay controller allows a PC to control external devices using simple RS232 commands. Relay is fully powered from the USB bus. Free download USB relay board control software.
ტრანსპორტირების ვადა – 4-5 დღე.
-
აღწერა
-
დამატებითი ინფორმაცია
-
მიმოხილვა (0)
რელე USB Relay KMTronic
რელე USB Relay KMTronic
რელე USB Relay KMTronic
რელე USB Relay KMTronic
რელე USB Relay KMTronic
Features:
• Fully assembled and tested.
• Fully powered from USB
• For 12V/24V DC 15A or 120V/220V AC at 10A max.
• Can be used with LabVIEW, ProfiLab, DAQFactory, TestPoint, DASYLab, VEE
Model:
U2CR
Contents:
– One USB Two relay controller
Dimensions:
100 mm / 62 mm / 26 mm
Typical Applications:
– Home automation
– Industrial automation
Links:
Manual – Download
Drivers – Download
Drivers are available to work with the following operating systems:
Window 10, Windows Server 2008 R2, Windows 7, Windows 7 x64, Windows Server 2008,
Windows Server 2008 x64, Windows Vista, Windows Vista x64, Windows Server 2003,
Windows Server 2003 x64, Windows XP, Windows XP x64, Windows 2000, Windows ME,
Windows 98, Linux, Mac OS X, Mac OS 9, Mac OS 8, Windows CE.NET (Version 4.2 and greater)
Communication Parameters:
8 Data, 1 Stop, No Parity
Baud rate : 9600
Commands:
– FIRST relay commands:
“FF 01 00” – OFF command
“FF 01 01” – ON command
– SECOND relay commands:
“FF 02 00” – OFF command
“FF 02 01” – ON command
Software:
Download – KMTronic_USB_Timer.zip
| ბრენდი | KMTronic |
|---|---|
| მოდელი | U2CR |
